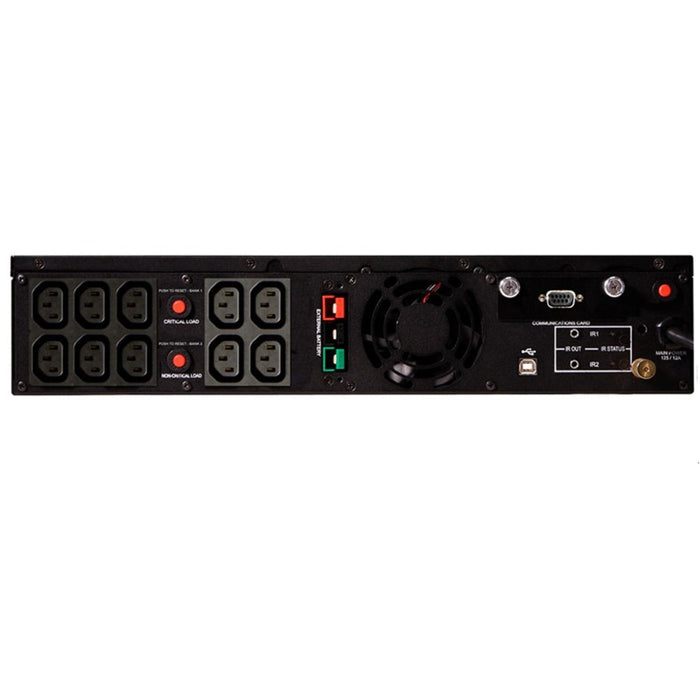

Furman BATT1500-EXT Battery Extension Pack for F1500-UPS E
Ritiro disponibile presso la sede Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
Di solito pronto in 2-4 giorni
Furman BATT1500-EXT Battery Extension Pack for F1500-UPS E
Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
14 Trafalgar Street
202
Woolloongabba QLD 4102
Australia
Furman
BATT1500-EXT Battery Extension Pack for F1500-UPS E
Features
-
1500 VA battery backup maintains critical data and allows orderly shutdown during a power outage.
-
BlueBolt technology (requires BlueBolt CV2 interface card) provides remote access to reboot components, power equipment on or off and monitor power quality from anywhere in the world.
-
Series Multi Stage protection (SMP) provides virtually maintenance free AC surge suppression.
-
Linear Filtering Technology for unequalled audio/video clarity.
-
Extreme Voltage Shutdown protects equipment from dangerous overvoltage conditions.
-
RS232 interface provides custom open source control.
-
USB interface
-
Critical load management prioritizes allocation of temporary power to connected equipment.
-
AVR voltage regulation provides a consistent 220V/230V/240V (±10%) output.
-
Optional battery extension pack available for extended runtime capability (FU-F1500BEXT).
-
Rack ears included
-
10 outlets
-
Dual learning IR blasters allow safe shut down of remote devices
Furman’s F1500-UPS E provides 1500VA true sine wave battery backup, BlueBOLT® Compatibility, SMP and EVS protection, Linear Filtration, and AVR standard level voltage regulation to provide ideal backup and protection to equipment that risks data loss or damage in the event of a power outage.
The F1500-UPS E robust 1500VA battery backup provides true sine wave output (ideal for A/V equipment) and will keep connected equipment powered on for up to 12 to 80 minutes depending on load, allowing ample time to save data and shut down equipment properly. If extended runtime is needed, an external battery pack (BATT1500-EXT, sold separately) is available to increase battery capacity by up to 4x.
Specifications
- General
- FamilyF-Battery
- Line Voltage120 (Volts)
- Number of Outlets8
- Number of Isolated Banks2
- Outlet DescriptionsAll 8 outlets surge protected, linearly filtered, and backed up
- Rack MountableYes
- Rack Ears IncludedYes
- Front Panel Meter(s)LCD Displays status and menu navigation items
- Front Media Light(s)No
- ControlRemote control through RS-232 interface card or via internet with BlueBOLT-CV1 card (sold separately)
- AC Power CordHeavy duty captive power cord
- Dimensions17″ W (19″ w/ rack ears) x 19.2″ D x 3.5″ H (4″ tall with feet installed)
- Weight72 lbs.
- Battery Backup
- Input Frequency47 – 63 Hz
- Regulation Capture Range96 – 135V (Sensitive Mode)
93 – 142V (Standard Mode) - Output Frequency60 Hz ± 1%
- UPS Output Capacity1500VA, 900W @ 0.6pf
- Regulation Output Range120V ± 5% (Sensitive Mode)
120V ± 10% (Standard Mode) - UPS Backup Time (Full Load)12 minutes
- UPS Backup Time (Half Load)32 minutes
- Transfer Time< 4ms
- AC Protection
- AC Protection TechnologyNon-sacrificial SMP (Series Multi-Stage Protection)
- Over-Voltage Shutoff150V ± 5V (fast rise)
140 ± 5V (slow rise) - Maximum Current Rating12 (Amps)
- Filtration
- Filtration TechnologyLinear Filtering Technology (LiFT)
- Filtration Rating10 dB @ 10kHz
40 dB @ 100 kHz
50 dB @ 500kHz
- Shipping Info
- Length26 (Inches)
- Width22.9 (Inches)
- Height10.8 (Inches)
- Weight85.4 (Lbs)
- Unit of MeasureEach
- UPC654061028185
- Master Pack Qty24
