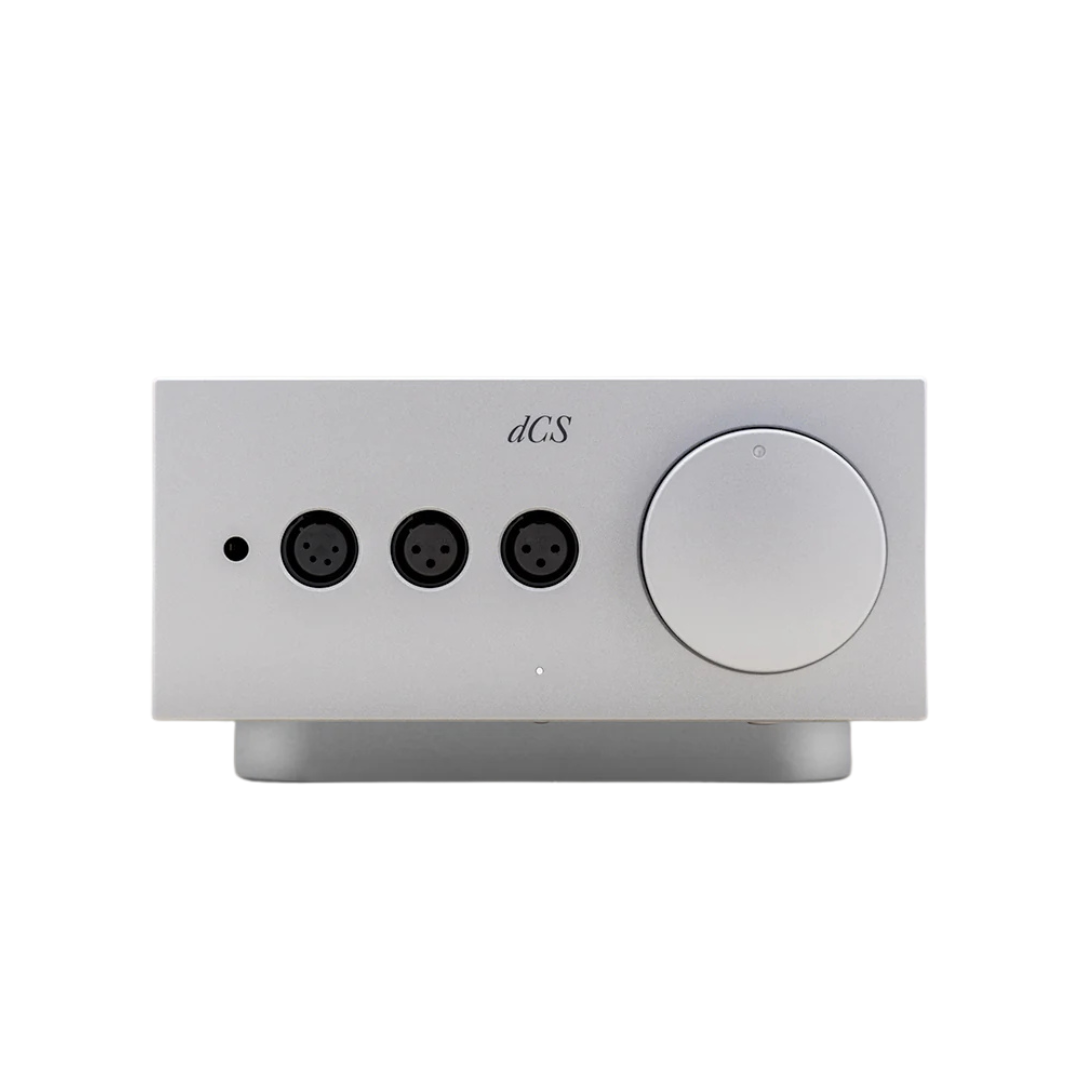

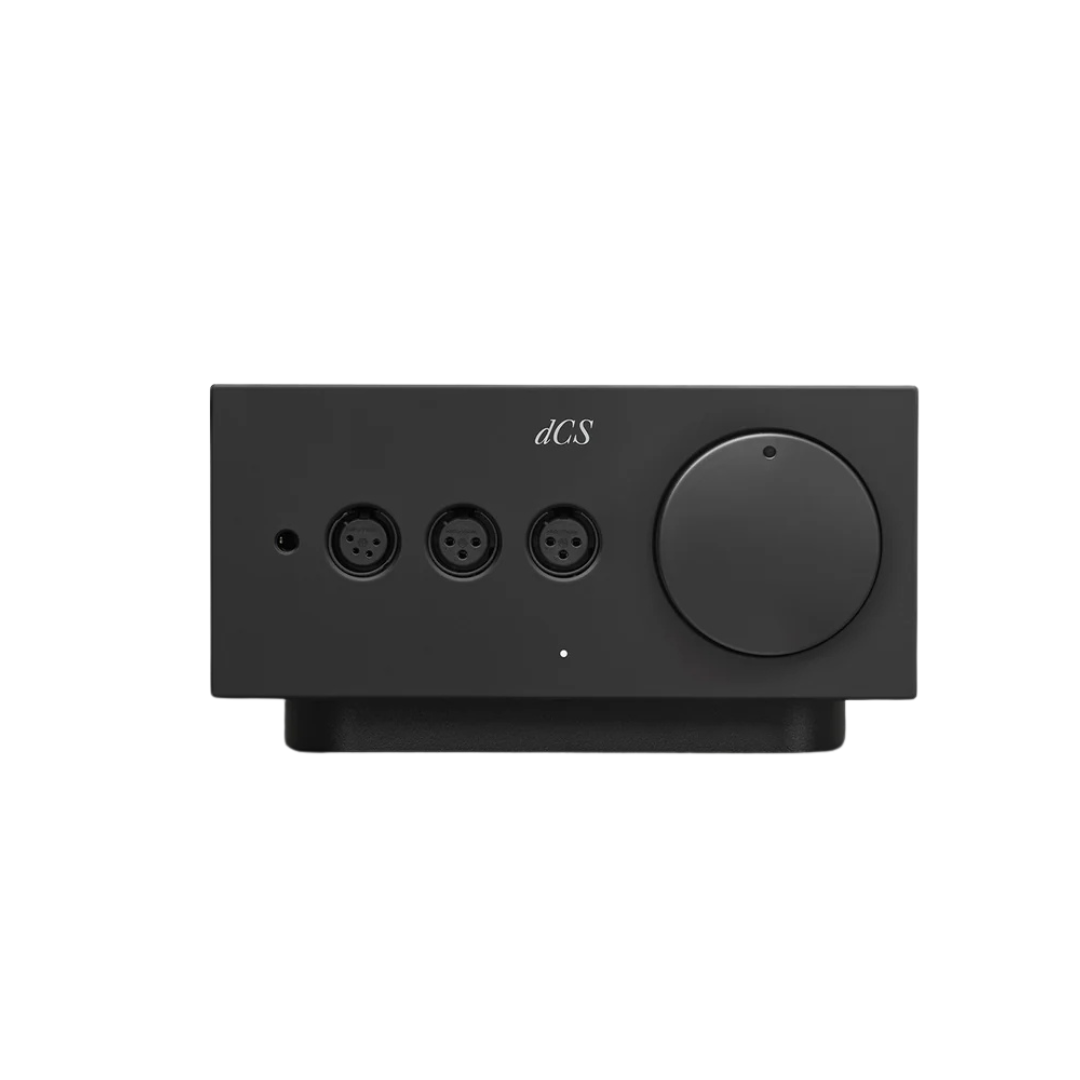

Lina Headphone Amplifier

Our powerful solid-state amplifier is designed to drive even the most demanding headphones to their full potential

• Drives a vast range of headphones, including IEMs and planars
• Complements virtually any headfi setup
• Unique design offers exceptional sonic and measured performance

Features

• Low output impedance ensures optimal sound with a huge range of headphones - including highly sensitive models
• Solid state design provides consistent, clean performance
• Choice of inputs caters to a variety of digital sources and audio setups
• Class AB design with DC servo system delivers high power efficiency and excellent linearity
• Billet aluminium chassis reduces risk of electromagnetic interference
• Transparent performance faithfully mirrors the sound of your chosen music and headphones

Specifications

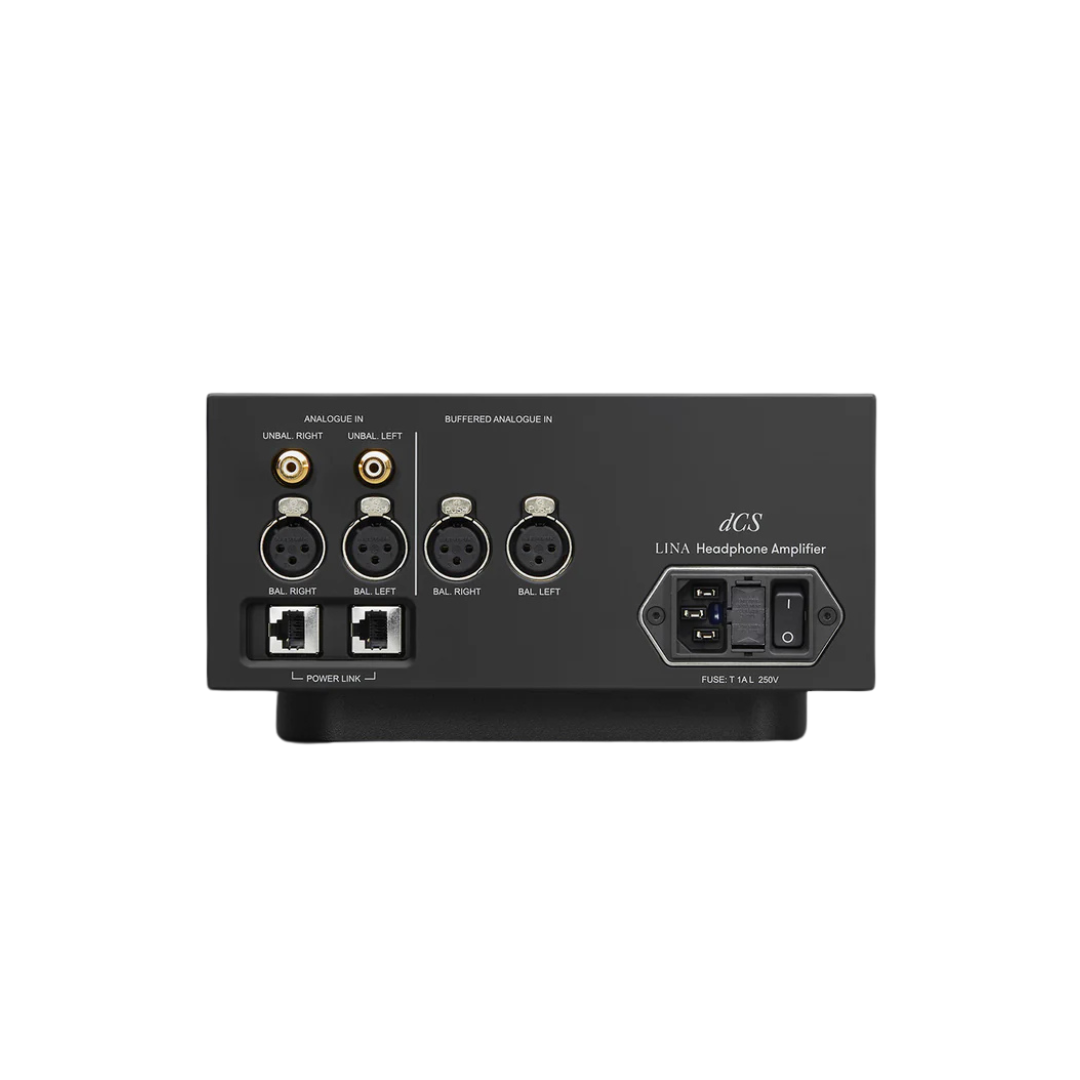

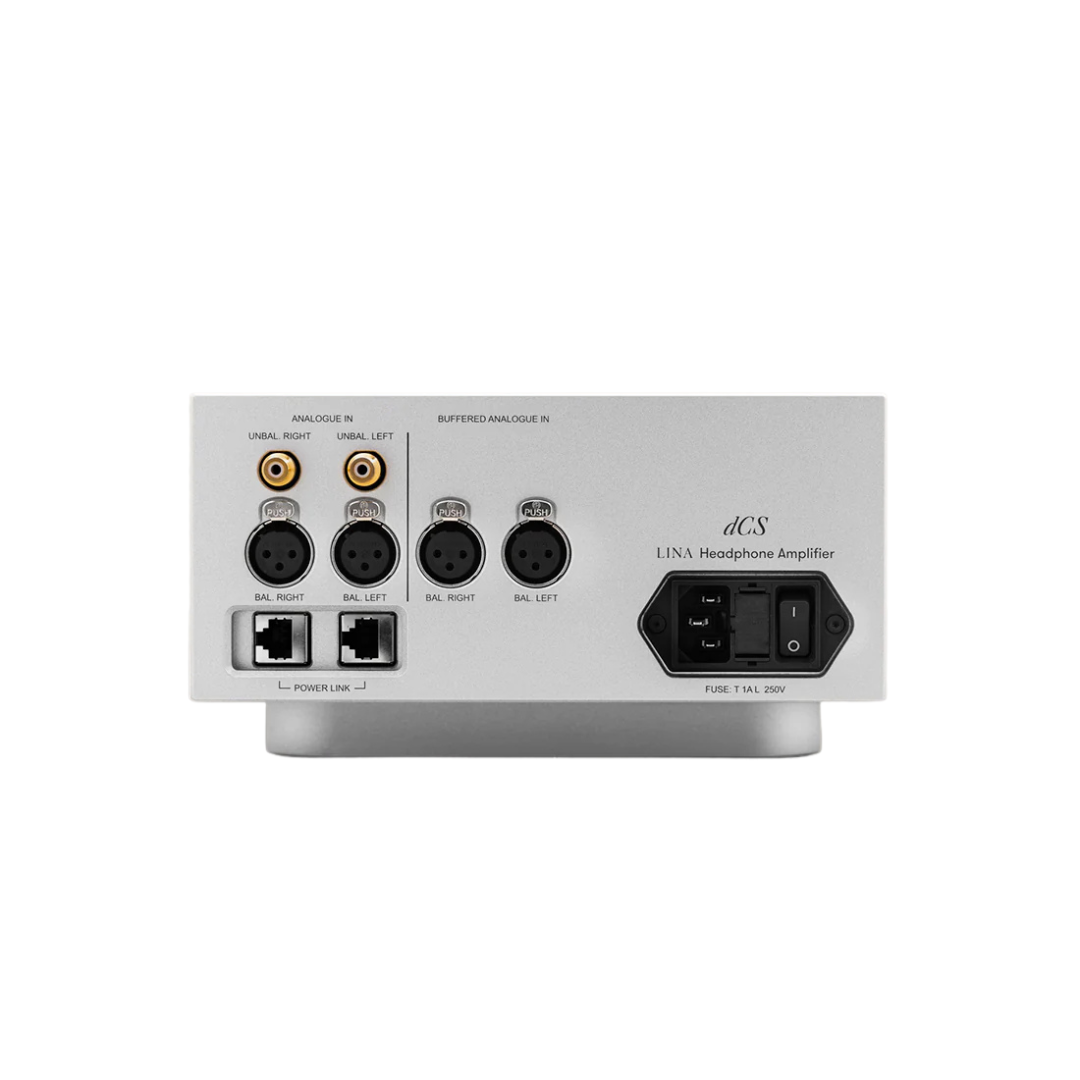

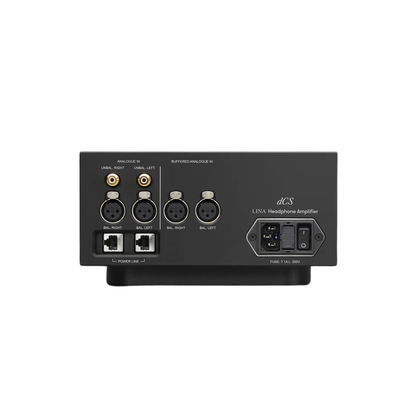

• Analogue Inputs

  • 1 x stereo pair unbalanced RCA, input impedance 48kΩ
  • 1 x stereo pair unbuffered balanced XLR, input impedance 16kΩ
  • 1 x stereo pair buffered balanced XLR, input impedance 96kΩ

• THD+N

  <0.005% @ 1kHz 6V rms balanced output into 30Ω (80kHz bandwidth)

• Frequency Response

  1Hz-100kHz Better than +0/-3dB

• Dimensions / Weight

  121.5mm (H) x 220mm (W) x 356mm (D) / 7.5kg

• Headphone Outputs

  • 1 x dual 3-pin balanced XLR, right and left channel
  • 1 x single 4-pin balanced XLR
  • 1 x single 1⁄4” (6.35mm) headphone jack

• Signal to Noise Ratio

  110dB 20Hz-20kHz A-weighted
  (referenced to 6V rms balanced input and output
