JL Audio

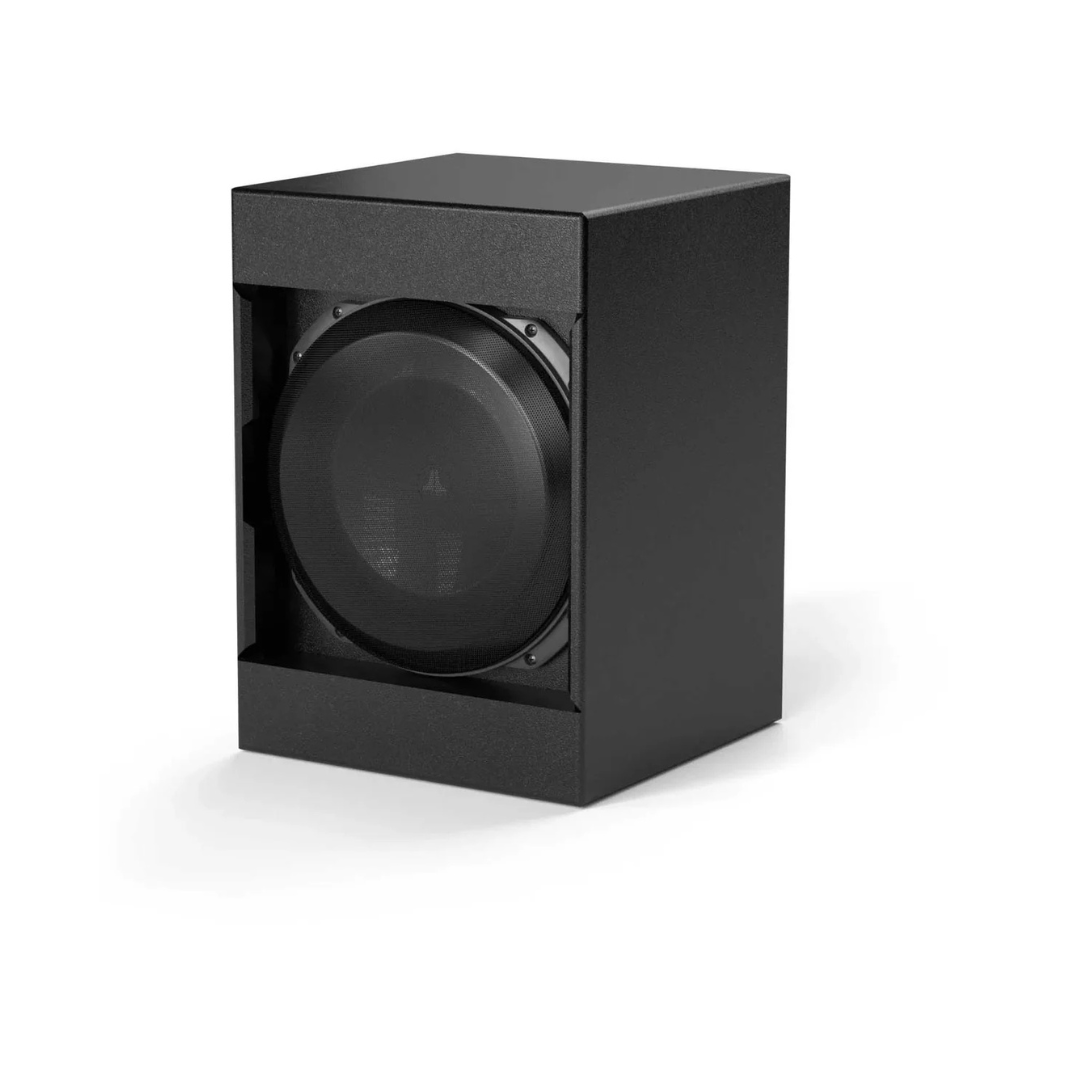

JL Audio Fathom® 13.5" (345 mm) Custom Theater Subwoofer, 14" (356 mm) Deep Enclosure (CTS-113-SD1400- 13TW5-SYS)

Born from JL Audio’s revolutionary Fathom® in-wall subwoofer system, CTS subwoofers are designed to deliver uncompromising bass performance for virtually any custom integrated application. Centered on a groundbreaking 13.5" thin-line driver, all CTS enclosures are critically constructed with extensive internal bracing aimed at improving rigidity, while keeping a low profile and minimal wall thickness. Offered in five variants, each sealed enclosure features MDF construction with reinforced areas to facilitate direct-to-frame mounting.

The CTS-113-SD1400-13TW5H subwoofer system is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1000 watts of clean power. JL Audio’s powerful DSP engine is also on hand, including our exclusive Digital Automatic Room Optimization (D.A.R.O.) system to ensure a smooth response, even in challenging rooms.

Crafted for the most demanding home theater or music system applications, Fathom CTS subwoofers are engineered to deliver legendary JL Audio bass
performance and fidelity. Includes black steel mesh grille.

Enclosure finish: flat black (hidden from view when installed)
Enclosure construction: computer numerical control-cut high-grade MDF

Features

• 13.5-inch Thin-Line Driver: This driver is specifically designed for low-profile enclosures, allowing for flexible placement in custom installations.
• 1000-watt Amplifier: Provides ample power for dynamic and impactful bass response.
• Sealed Enclosure: Offers tight, accurate bass response, ideal for home theater environments.
• Digital Automatic Room Optimization (D.A.R.O.): JL Audio's proprietary system optimizes the subwoofer's performance for a smooth and balanced sound, even in challenging room acoustics.
• Extensive Internal Bracing: The enclosure is designed with robust bracing to minimize unwanted resonance and improve rigidity.
• Direct-to-Frame Mounting: The design allows for secure and easy installation by attaching directly to the home theater's framing.

Specifications

• Driver Size: 13.5 inches
• Enclosure Type: Sealed
• Frequency Response: 27 Hz - 114 Hz (± 1.5 dB), –3dB at 25 Hz / 123 Hz, –10dB at 22 Hz / 150 Hz (Anechoic)
• Power: 1000 watts
• Enclosure Material: MDF
• Mounting: Direct-to-frame
