JBL

Stage 2 220P 12” Active Subwoofer

Highlights

• 12-inch (300mm) Polycellulose Ribbed Cone Low-Frequency Woofer

• 250W RMS (500W Dynamic)

• Dual Rear-Firing Tuned Ports

• Crossover, Level and Phase Control

Product Overview

Designed and engineered in our world-famous Acoustic Engineering Center of
Excellence in Northridge, California, Stage 220P is 500W and is the most powerful
subwoofer in the Stage series.

This subwoofer features a high excursion 12-inch (300mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.

Specificationwoofs

• Low Frequency Driver: 12-inch (300mm) Polycellulose Ribbed High Excursion

• Amplifier Power: 250W RMS (500W Dynamic)

• Frequency Response ± 6dB: 26Hz-150Hz

• Crossover Frequencies: 50Hz-150Hz (variable) 24dB/octave

• Controls: 35Hz-150Hz

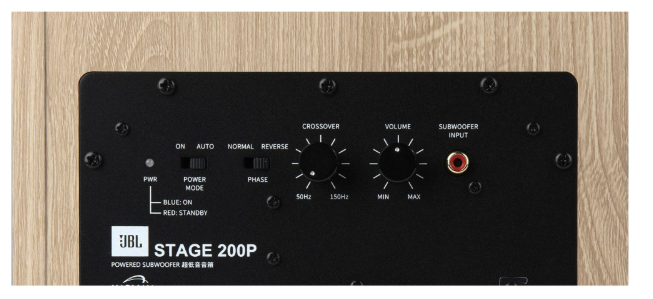

• Controls: Auto Power, Crossover, Level, Phase

• Inputs: One (1) Line-Level LFE Input

• Enclosure Tuning: Bass-Reflex via Dual Rear-Firing Tuned Ports

• Power Requirements: 220-230V, 50/60Hz (EU)

• Power Consumption: <0.5W (standby) / 205W/1.6A (max – 230V

• Finish: Espresso or Latte

• Dimensions (HxWxD): 416mm x 405mm x 444mm

• Product Weight: 18.7 kg

• Shipping Weight: 23.3kg
