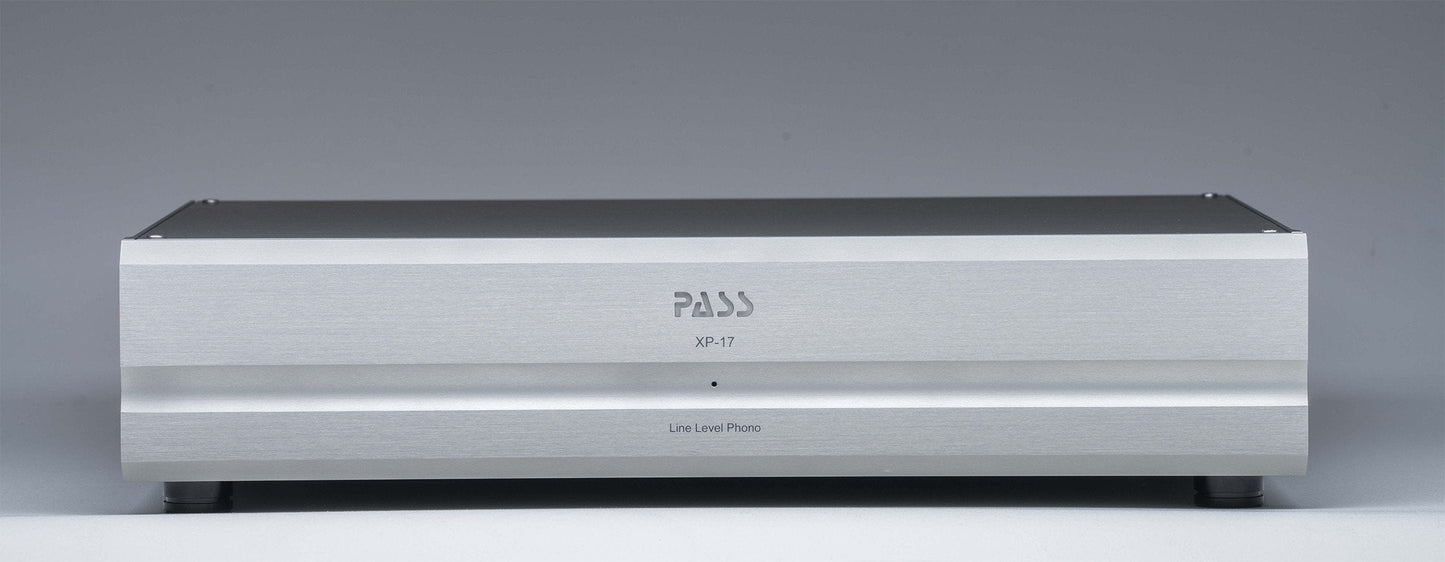

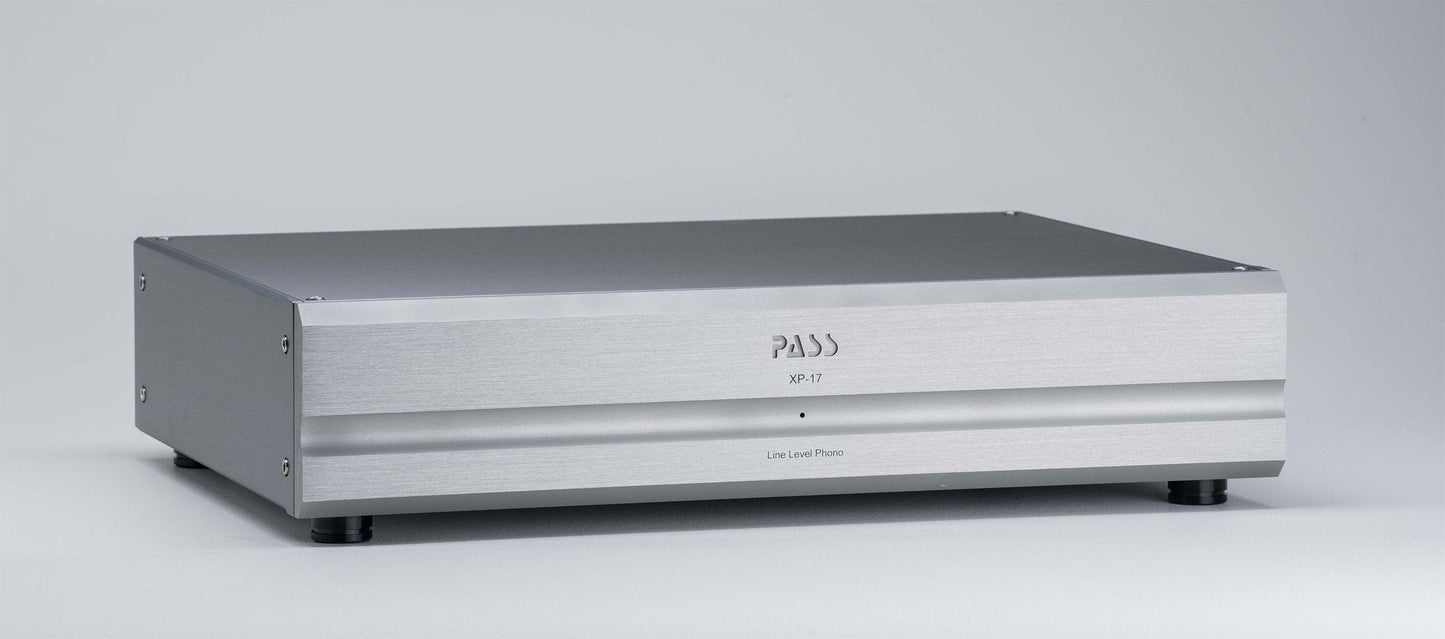

Pass Labs XP-17

Pass Labs



XP17 uses the new-shielded low noise toroid and input filter module, like the XP-12. The power supply has an extra stage of RC filtering.  We have lower radiated and mechanical noise.

The XP17 has an all-new input circuit that is symmetrical and lower in noise and distortion with greater drive capability. Noise is the most prominent part of THD+N in the first section of a phono stage. By lowering noise we get better resolution and dynamics.

Designed with a split EQ network like the XP 25 and XS Phono that is more accurate and can handle greater signal levels.

The secondary stage runs a higher bias output stage with auto bias.

The numerous loading options from the XP-15 are all still available and three gain settings to accommodate low output MC to MM cartridges.

Power Consumption: 35 Watts Gain: 76, 66, 56 dB Balanced; 70, 60, 50 Unbalanced Output Impedance: 110 Ohms RCA; 220 Ohms Balanced Input Impedance: 10 - 47K Ohms more than 200 values Capacitive Loading: 100 - 750 pF RIAA Curve Accuracy: +/- .1 dB 20 - 20 KHz Passive / Active EQ Distortion and Noise: 0.004%; Quad matched low noise symmetrical JFET input; Double shielded low noise toroid Dimensions: 17”w x 12.5”d x 4”h @ 19lbs
