IsoAcoustics Orea Graphite

IsoAcoustics Orea Graphite

Giá thông thường $69.00
Giá thông thường Giá bán $69.00
Giảm giá Đã bán hết
Phí vận chuyển được tính khi thanh toán.


Orea Graphite

Eliminates parasitic vibrations and provides greater sound clarity and focus. The OREA’s are ideal for electronic components including Amplifiers, DAC’s, CD Players, Speakers, and Turntables. Made of machined stainless steel, these isolators have a low-profile design to minimize any increase in height.

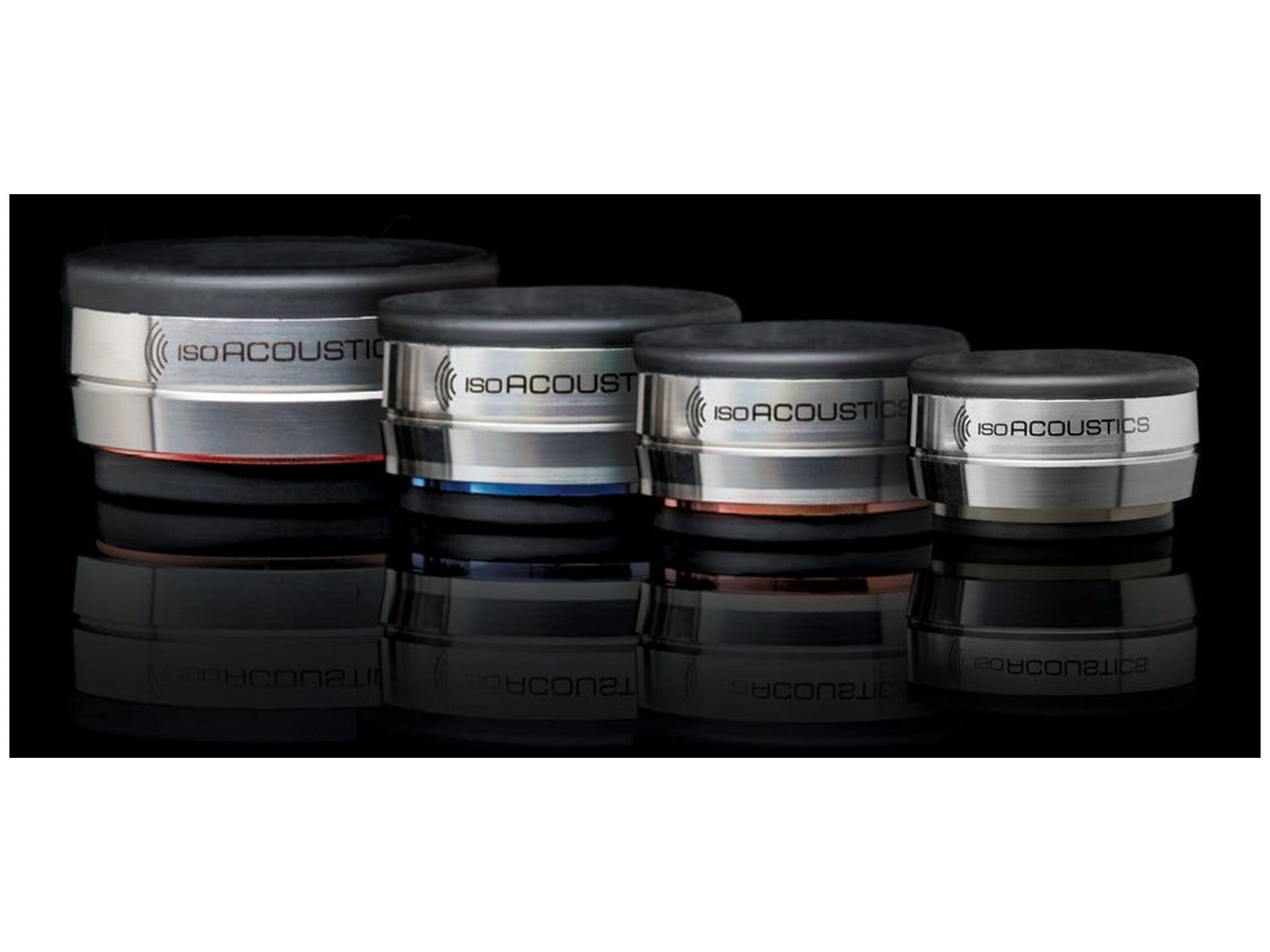

Each OREA model is designed with a different weight capacity. They each have a coloured ring on the bottom isolator that denotes the model and weight capacity. The OREA series are packaged individually to allow greater flexibility when determining the number of units to use. We recommend a minimum of 3 units under each component, depending on weight.

The upper flange of the OREA’s are designed to provide a suction cup like effect and adhere to the underside of the component, while the lower flange adheres to the supporting surface. All the energy is managed within the core of the OREA’s, which are tuned to work within specific weight ranges. This results in greater sound clarity and a more open soundstage providing authentic, three-dimensional sound.

The existing feet on an audio component may connect well and fit nicely around the perimeter of the OREA isolator. Alternatively, you may get better performance by either removing the feet entirely or placing the OREA’s beside the existing feet to have them connect directly to the chassis or base of the component.





WEIGHT CAPACITY



The weight capacity per OREA isolator is as follows:

  • OREA Graphite - 4 pounds (1.8 KG) per isolator
  • OREA Bronze - 8 pounds (3.6 KG) per isolator
  • OREA Indigo - 16 pounds (7.2 KG) per isolator
  • OREA Bordeaux - 32 pounds (14.4 KG) per isolator

The OREA’s are designed to be used in multiples to match the weight of the component or speaker. The total weight capacity is calculated as follows:

Total Weight Capacity = [Weight cap. per isolator] x [Qty of Isolators]



OREA Graphite Weight Cap
Qty of Orea Graphite
Total Weight Capacity
4 lbs (1.8 KG) per Isolator
3
4
5
6
12 lbs (5.4kg)
16 lbs (7.2kg)
20 lbs (9kg)
24 lbs (10.8kg)


It is common to use 3 or 4 OREA isolators for each component or speaker, but keep in mind that it is most important to stay within the weight capacity of the OREA isolator.

The weight distribution of the component can also be taken into account. If for example the component is heaviest at the back, then it is common to use 3 isolators with 2 positioned at the back corners and 1 positioned front/center.


Specification



SUPPORT

  • Component up to 1.8 kg

DIMENSION

  • L 1.6'' x H 1.1'' (40mm x 27mm)

WARRANTY

  • 2 Years

WHAT'S IN THE BOX

  • 1 x Isolation Foot



* Notes: Suggested minimum of 3 units per Hardware Piece.



Reviews

“They offer fantastic isolation support and vibration control to a huge amount of equipment and applications at a price that is simply unheard of in this somewhat overpriced industry”

Read the full review here on Hifi Pig.



''... the sound acquired another measure of clarity and transparency: the result was similar to the effect of putting GAIA under my speakers...''

Read the full review here on Stereophile



'' ... the IsoAcoustics isolator pods are easily recommendable. Slip some under your gear and the audible results are both obvious and worthwhile.''

Read the full review on Stereonet.
