KEF
CI160TR In-Ceiling Speaker
CI160TR In-Ceiling Speaker
KEF CI160TR

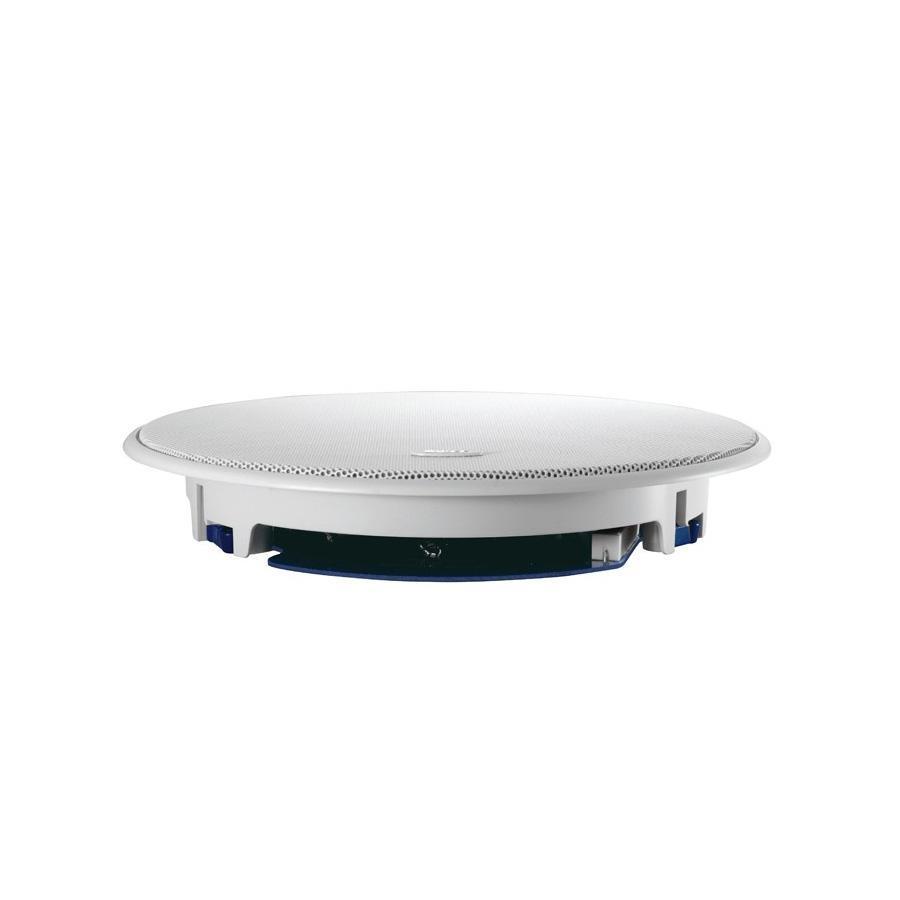

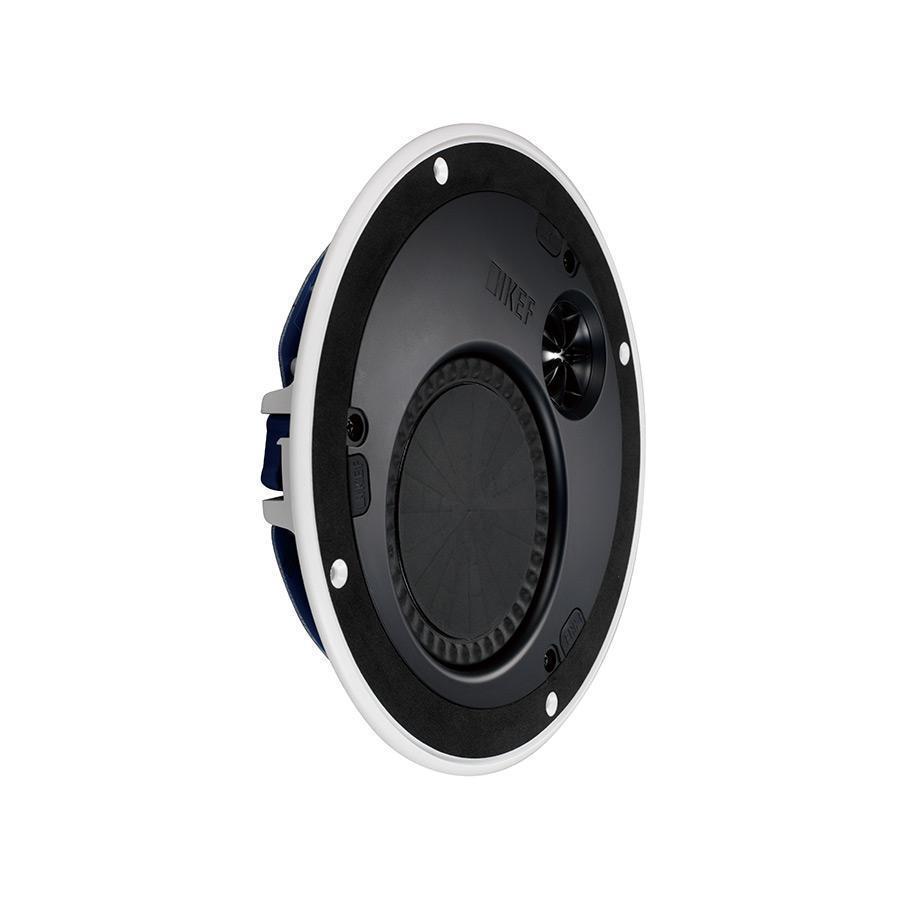

Boasting the latest incarnation of our formidable 4.5in mid/bass T series driver and powerful 1in tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.
Key Features
• <36mm mounting depth allows fitment to very restricted cavities
• Ultra-low profile LF unit with excellent bass extension

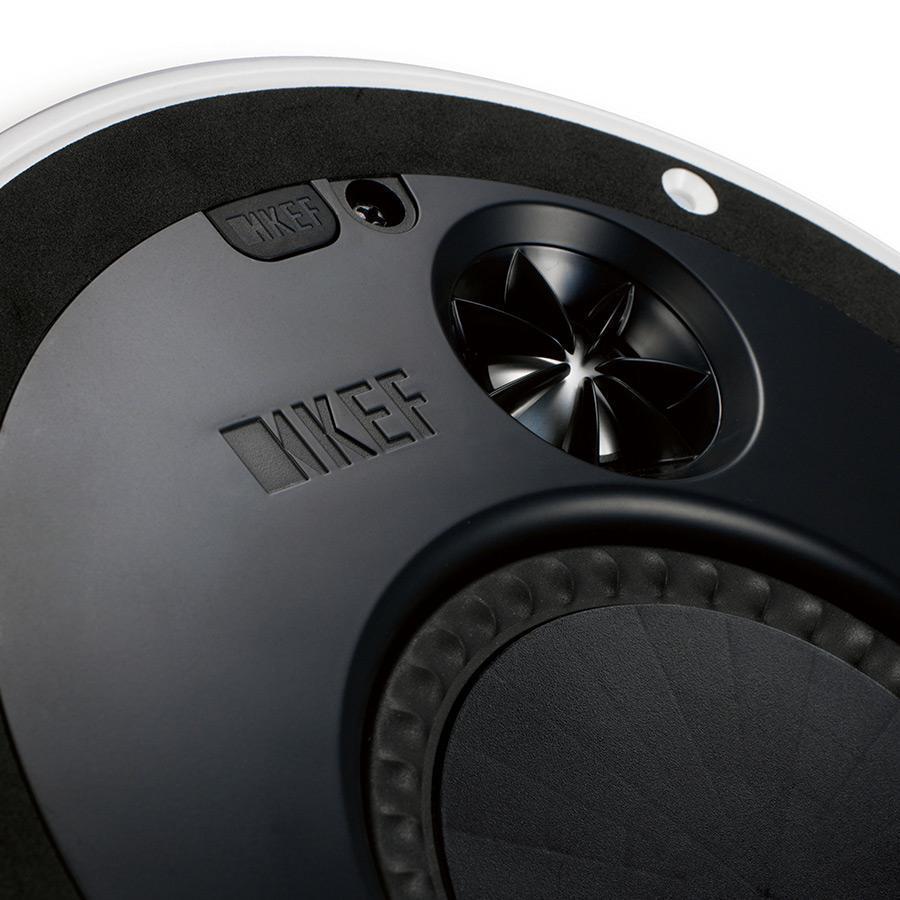

• Vented tweeter with KEF’s unique ‘tangerine’ waveguide for natural HF response and wide, even dispersion
• Rigid flat diaphragm assures clean upper bass and mid-range response
• Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
• Fast, versatile installation on virtually any surface via dogleg or direct screw fastening
Specification
| Model | Ci160TR |
| Series | T Series |
| Nominal impedance | 8Ω |
| Sensitivity (2.83V/lm) | 87dB |
| Frequency response (±6dB) open-backed | 110Hz-24kHz |
| Crossover frequency | 1.7kHz |
| Drive units | LF: 115mm (4.5 in.) dual layer MF HF: 25mm (1 in.) aluminium HF |
| Recommended amplifier power | 10-100W |
| Product external dimensions | Diameter: Φ234.6mm (Φ9.24 in.) Depth: 40mm (1.57 in.) |
| Cut-out dimensions | Φ196mm (Φ7.71 in.) |
| Net Weight | 1 kg |
| Mounting depth from surface | 36mm (1.42 in.) |
| Minimum wall thickness | 10mm (0.39 in.) |
| Maximum wall thickness | 25.5mm (1 in.) |
| Optional rough in frame | RIF160R |
| Optional rear enclosure | RNC160R |
-
