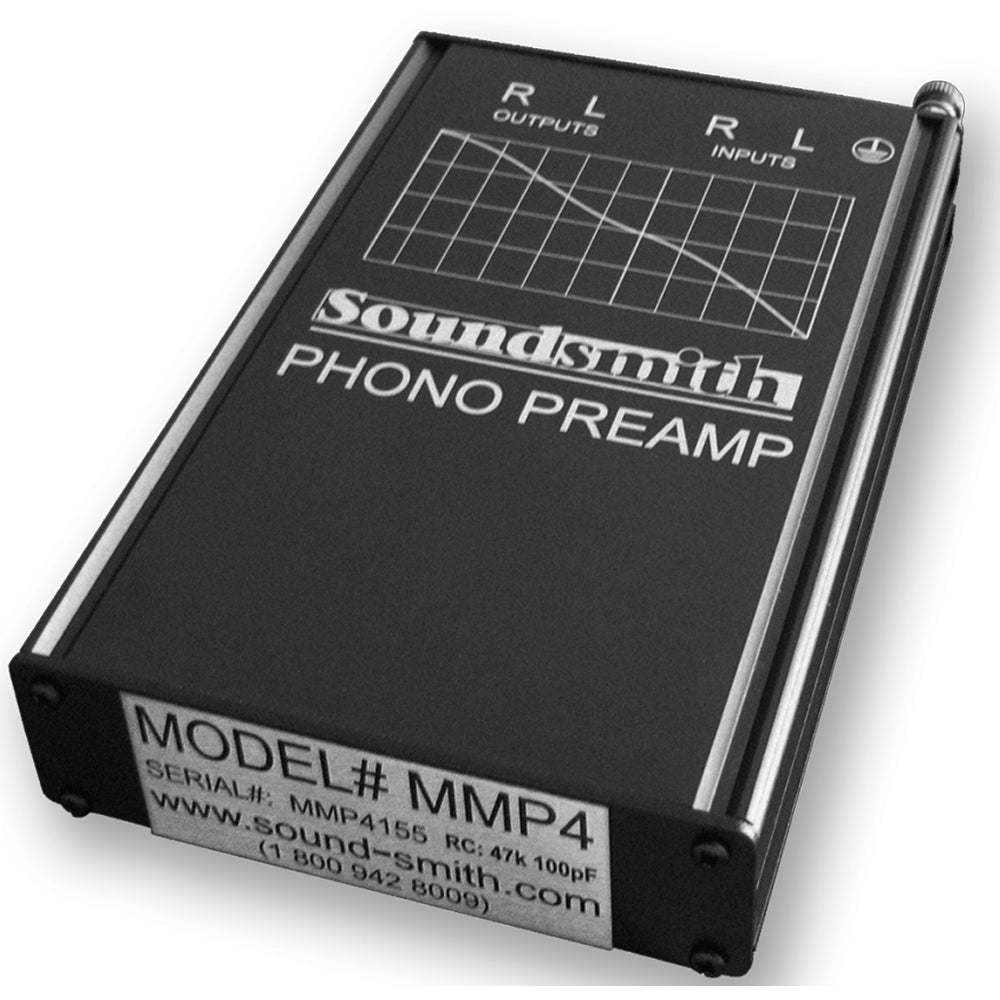

MMP4 Phono Preamp

The Soundsmith MMP4 Phono preamp is a revolutionary design for the price – and the comments received at each hi-fi show prove it. These preamps are what Soundsmith use to demo their cartridges at all shows even their high-end cartridge designs

Each hand-made preamp circuit is housed in a high-quality aluminium case, powered by an external DC power supply, with easy to set up instructions. All amplifiers have extremely accurate RIAA equalization responses.

The MMP4 is a more cost-effective way to enjoy your high output MC, MM or MI cartridge. Its design is based on Soundsmiths highly praised MMP3, and the specs and sonics make it a great value. It features 47K loading and 43 dB of gain.

Employing very high-quality components, the MMP4 assures noise-free and ultra-low distortion to allow unfettered enjoyment from your treasured vinyl collection. The MMP4 and MMP3 have been favourably demonstrated against preamps costing $2000 – $4000 with surprising results… and compliments to Soundsmith.

Specifications

Preamp type = moving magnet

Input Load = 47kΩ 100pF

Gain = 43dB standard ** or 34dB special order

Noise (unweighted) = -92 dB down

Features = high grade low noise components

Width = 115mm

Height = 54mm

Depth = 181mm

Weight = 0.41kg

** Soundsmith “Fixed Coil” Moving Iron cartridges are best with 42- 44 dB gain preamps; most moving magnet and moving Iron cartridges will work well with our 43dB gain preamps, however, for VERY HIGH output cartridges (4.5mV or higher) Soundsmith offers a 34dB gain preamps as an option ~ THD measurements 1kHz, ~0.004%
