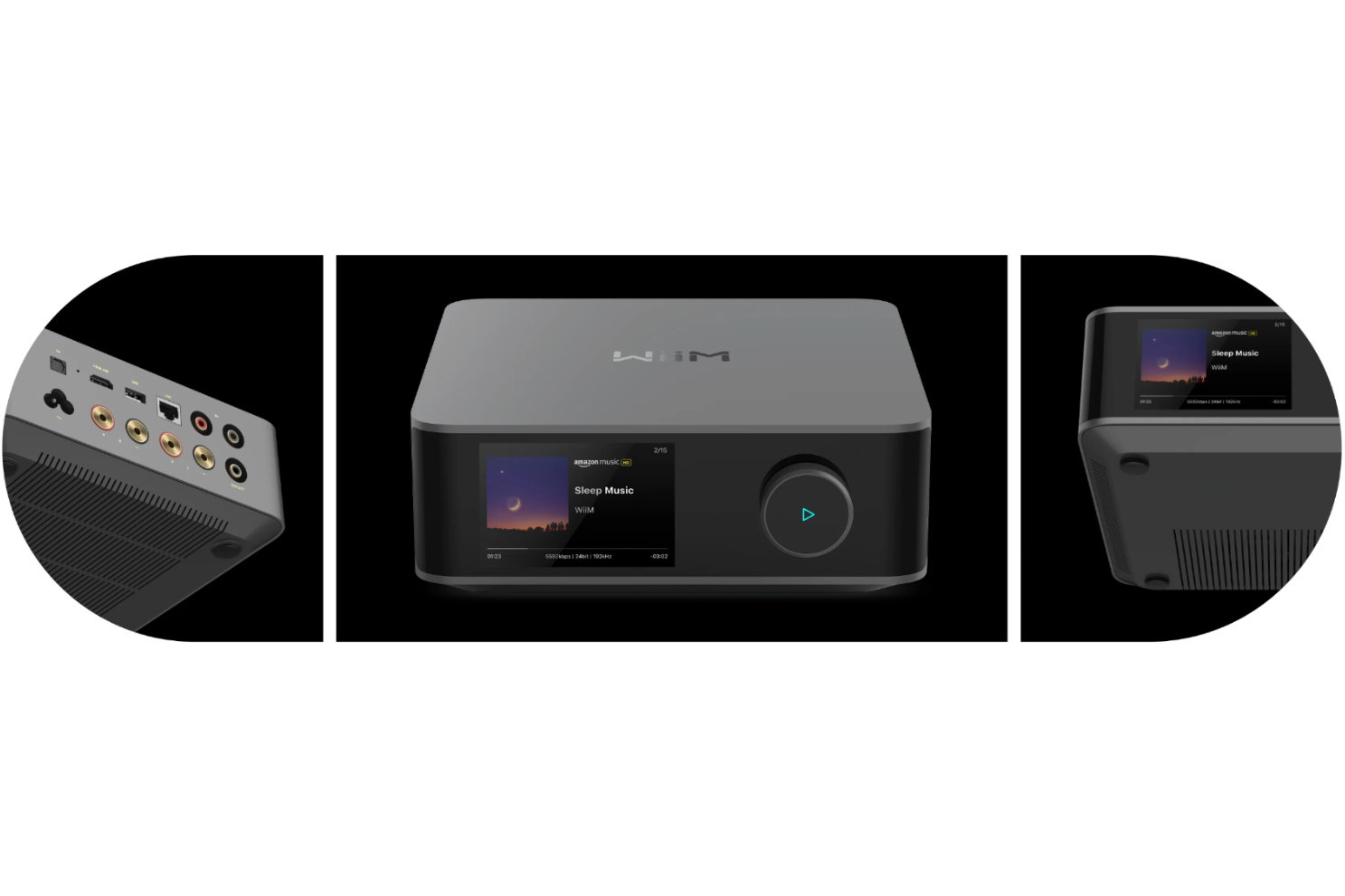

WiiM Amp Ultra Streaming Amplifier

$899.00

Color: Space Grey

Space Grey Silver

数量:

可在 Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102 取货

通常在 2-4 天内就绪

WiiM Amp Ultra Streaming Amplifier

Space Grey

Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102

可取货, 通常在 2-4 天内就绪

14 Trafalgar Street
202
Woolloongabba QLD 4102
澳大利亚

0405994434

描述

WiiM Amp Ultra

Meet the WiiM Amp Ultra the most advanced streaming amplifier yet. Built for music lovers, home theater buffs, and smart home fans, it delivers stunning 100W per channel (8Ω) with ultra-low distortion, pushing high-fidelity audio to every corner of your space. Whether it’s vinyl, Spotify, or cinematic surround sound that you’ll hear it like never before.

Designed to stand out and fit in, the Amp Ultra features a sleek unibody aluminum chassis and a vibrant 3.5″ glass-covered touchscreen. Easily control playback, switch sources, view album art, and more, all at your fingertips.

Under the hood, the Amp Ultra is powered by top-tier components:

ESS ES9039Q2M SABRE DAC
Dual TI TPA3255 Class-D amplifiers
Six TI OPA1612 op-amps

Combined with Post Filter Feedback (PFFB) technology, it delivers clean, detailed sound with consistent performance across all speaker loads—perfect for bookshelf, floor standing, or in-wall speakers.

Post Filter Feedback Technology

At the core of the WiiM Amp Ultra’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.

Advanced Thermal Management

High-power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure with advanced thermal management:
Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.
Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.
Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.

Next-Gen Wireless Streaming

Stay connected with the latest in wireless tech:
Wi-Fi 6 (Tri-Band), Bluetooth 5.3 with SBC and AAC support
Stream ultra-high-resolution audio with near-zero latency—no dropouts, no lag, just music.

See Your Sound

A vivid 3.5″ glass touchscreen puts album art, VU meters, and one-tap controls front and center—making input switching, setting tweaks, and playback navigation effortless, with instant visual feedback.

Built-In RoomFit™ Room Correction

Every room is different—WiiM Amp Ultra adapts. Using built-in acoustic measurement and correction, it tunes your setup to match your environment, optimizing for speaker type, distance, and room acoustics.

All the Music You Love, All in One Place

Stream directly from your favorite platforms:

Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, SoundCloud, and more.

Prefer using your own apps? No problem—Amp Ultra supports:

Chromecast, Alexa Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, DLNA, SqueezeLite, and Roon Ready.

Tailor Your Sound

Dial in the perfect tone with:

24 Preset EQ Profiles

10-Band Graphic and Parametric EQ

Per-input EQ settings

Versatile Connectivity

Easily integrate turntables, TVs, CD players, or stream to any WiiM or Bluetooth-enabled device.

Control Everything with the WiiM Home App

One app. Total control.

Stream music, adjust EQ, group rooms, set alarms, or update firmware with ease—right from your phone or tablet.

Take full control with the WiiM Voice Remote 2

WiiM Voice Remote 2 crafted with a sleek aluminum body, rechargeable battery, and intuitive Push-to-Talk voice commands—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.

Smarter Listening

Multi-Room Audio with WiiM, Google Home, and Alexa systems

Stereo Pairing for wider soundstage

Home Theater Mode with HDMI ARC and Dolby Digital support

Smart Presets & Alarm Clock to simplify your routine

Voice Control via Alexa, Google Assistant, or the included WiiM Voice Remote

Technical Specifications

Dimensions and Weight

Dimensions: 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm)Weight: 5.4 lbs (2.45 kg)

Audio Performance

• Power Output (THD = 0.08%, two channels driven): 100 W per channel @ 8Ω, 200 W per channel @ 4Ω

• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology

•Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)

• Signal-to-Noise Ratio (SNR) : ≥120dB

• Damping Factor: 94

• Frequency Response: 20Hz – 20kHz ± 0.5dB

• Impedence Range: 2 – 8Ω

Audio Processing

Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.

Bit-Perfect Playback: Supports up to 192kHz/24-bit audio

Dynamic Range: ≥120dB for high-resolution sound

Input & Output Options

Analog Inputs:

• 1x RCA Stereo: Connects to external audio sources like CD players or PCs

Digital Inputs:

• 1x Optical (TOSLINK) – Up to 192kHz/24-bit

• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats

Speaker Outputs:

• Gold-plated binding posts (supports banana plugs or bare wire connections)

USB Audio Output:

• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant

Sub Output:

• Dedicated output for powered subwoofers (RCA Mono)

Wireless & Network Connectivity

Wireless Connectivity:

Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming

Wired Network:

Ethernet (100Mbps): Standard RJ45 port

EQ & Sound Customization

Input-Specific EQ:

Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In

EQ Tools:

▪ 24 Preset EQ Profiles

▪ 10-Band Graphic & Parametric EQ

▪ Built-in Room Correction with mic-guided acoustic tuning

Streaming Protocols:

WiiM Home App

Google Cast

Spotify Connect

TIDAL Connect

DLNA, LMS

Roon Ready (Certification Pending)

Multi-Room Audio:

Compatible with WiiM, Google Home, and Alexa multi-room systems

Stereo Pairing:

Supports L/R speaker setup for enhanced stereo imaging

Home Theater Mode:

Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC

Smart Presets:

Quick access to favorite playlists, sources, or routines

Alarm Clock:

Configurable time, repeat schedule, and music source

Touch Display

Screen: 3.5” glass-covered capacitive touchscreen

Functions:

Playback controls, album art, EQ adjustment, input switching

Queue view, preset access, VU meters, time/date in standby

Custom wallpapers and onboarding setup (OOBE)

Supports firmware updates directly via screen

Design & Controls

Chassis: Precision-machined unibody aluminum for durability & heat dissipation

Dimensions: 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm)

Weight: 5.4 lbs (2.45 kg)

Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control

Cooling System: Passive, silent operation

Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)

Package Contents

User Guide *1

Power Cable *1

RCA Cable *1

Optical Cable *1

HDMI Cable *1
Remote 2 *1

Banana Plugs *4
